Standard Thermocouple Connectors and Accessories

Features

Choice of body types: Thermoplastic rated to 220°C, Thermosetting plastic rated to 350°C or Ceramic rated to 650°C
Available in all thermocouple types
ANSI MC96.1 or IEC 60584.3 Colour Codes (DIN and JIS colours are also available)
Accepts stranded or solid wires from 0.2mm to 1.29mm diameter (0.03mm² to 1.3mm²). Or up to 1.63mm diameter (2.1mm²) with washer removed
High purity thermocouple alloys used for male pins and female socket connections
Polarised round pins
Choice of solid or hollow pins
Easy wiring via lipped washer
Single captive screw for quick assembly

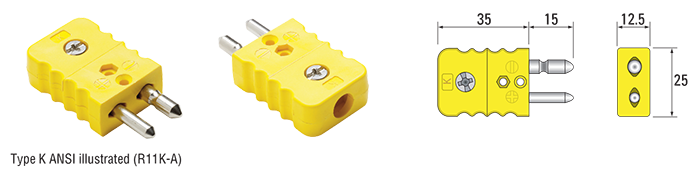

R11 - Standard Solid Pin Plug rated to 220°C

Type K ANSI Illustrated (R11K-A)

R10 - Standard Hollow Pin Plug rated to 220°C

Type K ANSI Illustrated (R10K-A)

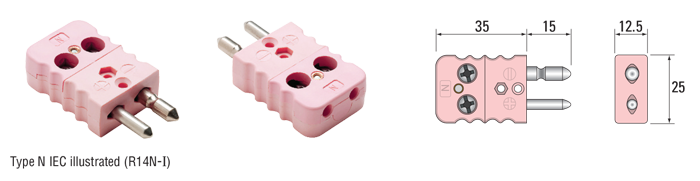

R14 - Standard Solid Pin Plug - Quick Wire rated to 220°C

Type N ANSI Illustrated (R14N-A)

R37 - Standard Solid Pin Panel Plug - Lugged rated to 220°C

Type J ANSI Illustrated (R37J-A). Recommended cutout: 13mm x 26mm

R16 - Three Pin Standard Solid Pin Plug rated to 220°C

Type CU Illustrated (R16CU)

R91 - Duplex Standard Solid Pin Plug rated to 220°C

Type K ANSI Illustrated (R91K-A)

R20 - Standard Jack rated to 220°C

Type K ANSI Illustrated (R20K-A)

R24 - Standard Plug - Quick Wire rated to 220°C

Type R/S ANSI Illustrated (R24RS-A)

R26 - Standard Panel Jack - Square Flanged with Bracket rated to 220°C

Type J ANSI Illustrated (R26J-A)

R26H - Standard Panel Jack - Square Flanged with Holes and Bracket rated to 220°C

Type K ANSI Illustrated (R26HK-A)

R28 - Standard Panel Jack - for use with Mounting Kit rated to 220°C

Type T ANSI Illustrated (F29T-A) - see accessories for mounting kit. Recommended cutout 13mm x 25.8mm

R29 - Standard Panel Jack - Rectangle Flanged with Bracket rated to 220°C

Type K ANSI Illustrated (R29K-A). Recommended cutout: 13mm x 26mm

R29S - Standard Panel Jack - Rectangle Flanged with Spring Clip rated to 220°C

Type N ANSI Illustrated (R29SN-A). Recommended cutout: 13mm x 26mm

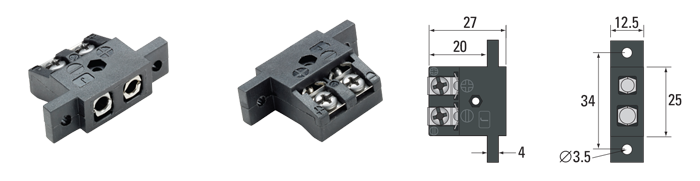

R27 - Standard Panel Jack - Lugged - Open Back rated to 220°C

Type J ANSI Illustrated (R27J-A). Recommended cutout: 13mm x 26mm

R30 - Standard Panel Jack - Lugged - Closed Back rated to 220°C

Type N ANSI Illustrated (R30N-A). Recommended cutout: 13mm x 26mm

R32 - Standard Panel Jack - Round Flanged rated to 220°C

Type T ANSI Illustrated (R32T-A)

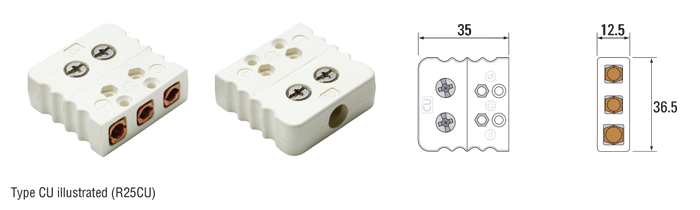

R25 - Standard Jack - Three Pin rated to 220°C

Type CU Illustrated (R25CU)

R31 - Standard Panel Jack - Lugged - Three Pin rated to 220°C

Type R/S ANSI Illustrated (R31RS-A). Recommended cutout: 0.53" x 1.46"

R92 - Standard Jack - Duplex rated to 220°C

Type K ANSI Illustrated (R92K-A)

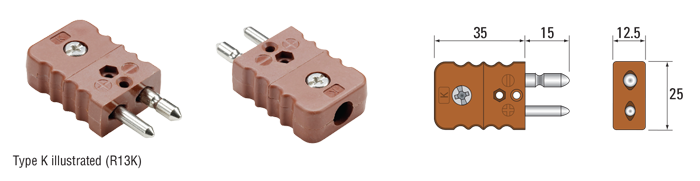

R13 - Standard High Temperature Solid Pin Plug rated to 350°C

Type K Illustrated (R13K)

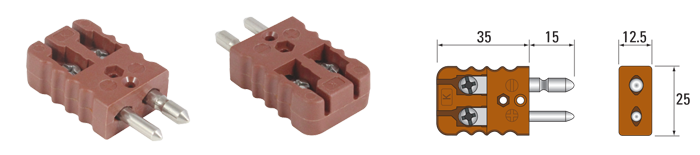

R08 - Standard High Temperature Solid Pin Plug - Quick Wire rated to 350°C

Type K Illustrated (R08K)

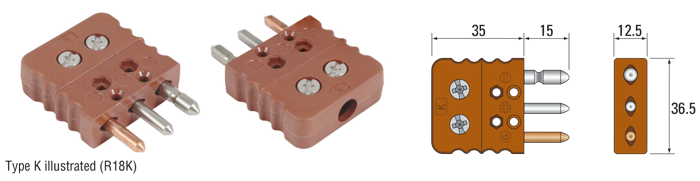

R18 - Standard High Temperature Solid Pin Plug - Three Pin rated to 350°C

Type K Illustrated (R18K)

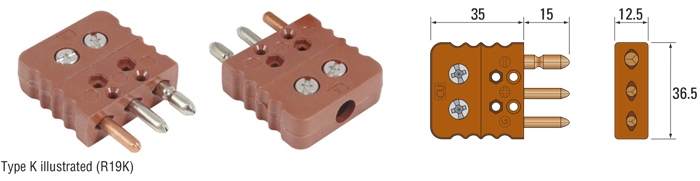

R19 - Standard High Temperature Hollow Pin Plug - Three Pin rated to 350°C

Type K Illustrated (R19K)

R22 - Standard High Temperature Jack rated to 350°C

Type K Illustrated (R22K)

R09 - Standard High Temperature Jack rated to 350°C

Type K Illustrated (R09K)

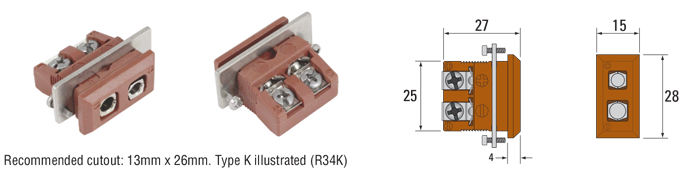

R34 - Standard High Temperature Panel Jack rated to 350°C

Type K Illustrated (R34K). Recommended cutout: 13mm x 26mm

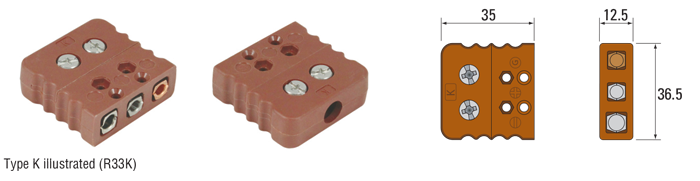

R33 - Standard High Temperature Jack - Three Pin rated to 350°C

Type K Illustrated (R33K)

R35 - Standard High Temperature Panel Jack - Three Pin Rectangle Flanged with Bracket rated to 350°C

Type K Illustrated (R35K). Recommended cutout: 13mm x 37mm

R100 - Standard Ceramic Solid Pin Plug rated to 650°C

Type K IEC Illustrated (R100K-A)

R130 - Standard Ceramic Solid Pin Plug - Quick Wire rated to 650°C

Type K ANSI Illustrated (R130K-A)

R200 - Standard Ceramic Jack rated to 650°C

Type K IEC Illustrated (R200K-A)

R240 - Standard Ceramic Jack - Quick Wire rated to 650°C

Type K IEC Illustrated (R240K-A)

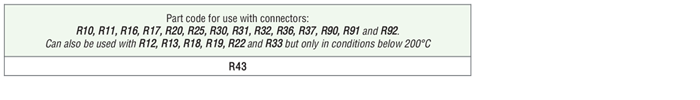

Cable Grommet	Application The cable grommet is fitted into the exit hole of the connector which prevents dirt or moisture entering the connector when used with wires or cable. Construction Silicone rubber ring with collar, slit for easy use. Compresses on the wire or cable when connector is fully assembled. Temperature Rating 200°C.
Cable and Wire Insert	Application Fitted inside the connector, the insert allows the user to hold wires and cables in place, providing a strong grip without the insert protruding outside of the connector. Construction Polypropylene for either round or oval cables. Temperature Rating 110°C.
Cable Bending Protection	Application Provides bending protection for small wires and cables when used with standard connectors. Reduces potential mechanical damage to the cable. The conical end can be cut back to suit the cable. Construction Silicone Rubber. Temperature Rating 200°C.
Cable Clamp	Application Allows the user to clamp wires and cables in place. Construction Stainless steel including stainless steel screws. Temperature Rating 800°C (only limited by the temperature rating of the cable or connector it is attached to).
Internal Crimp/Braze Adaptor Clamp	Application This adaptor can be crimped onto a mineral insulated cable or metal tube so it may then be attached to a standard connector. A crimp tool is available if required. Stainless steel adaptors may also be brazed. Brass adaptors can also be used to crimp some soft materials such as PVC or PFA wires and cables. Construction For 220°C and 350°C range connectors: Nickel Plated Brass, Brass or Stainless Steel. For Ceramic connectors: Stainless Steel only. Notes Bore diameters listed are supplied at 'd' +0.1mm.
Internal Compression Tube Adaptor	Application This adaptor compresses onto a mineral insulated cable or metal tube so it may then be attached to a standard connector. For use with 220°C and 350°C plastic and 650°C ceramic versions. Construction All Stainless Steel parts. Notes Bore diameters listed are supplied at 'd' +0.1mm.

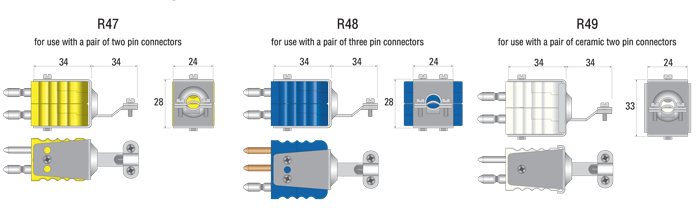

External 'L' Bracket Crimp/Braze Adaptor	Application This bracket adaptor crimps or brazes onto a mineral insulated cable or metal tube so it may then be attached to a standard connector. Provides a stronger solution than the Internal Crimp/Braze Adaptor. Construction Stainless Steel. Notes Bore diameters listed are supplied at 'd' +0.1mm.

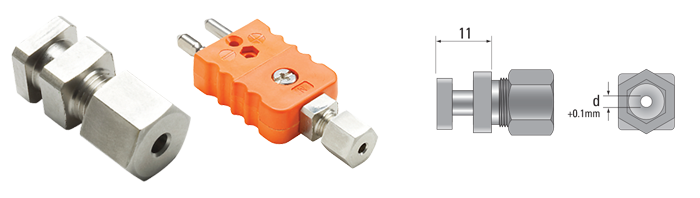

External Compression Tube Adaptor	Application This adaptor compresses onto a mineral insulated cable or metal tube so it may then be attached to a standard connector. Provides a stronger solution than the Internal Compression Tube Adaptor. Construction All Stainless Steel parts with Brass olive. Notes Bore diameters listed are supplied at 'd' +0.1mm.

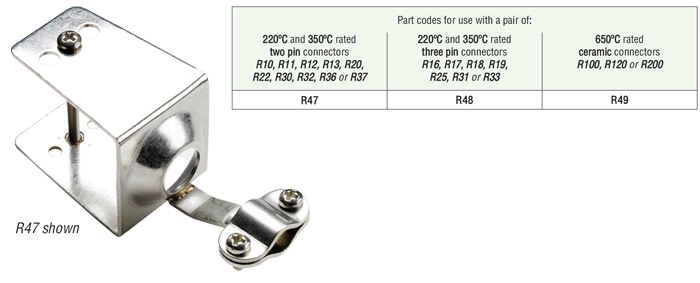

'U' Bracket Cable and Wire Clamp	Application Allows the user to attach a pair of standard connectors together and use as a cable and wire clamp. Construction Stainless steel including stainless steel screws.
'U' Bracket Crimp Adaptor	Application This adaptor crimps onto a mineral insulated cable or metal tube so it may then be attached to a pair of standard connectors. A crimp tool is also available for 8.0mm crimp diameter. Construction Stainless steel. Notes Bore diameters listed are supplied at 'd' +0.1mm.

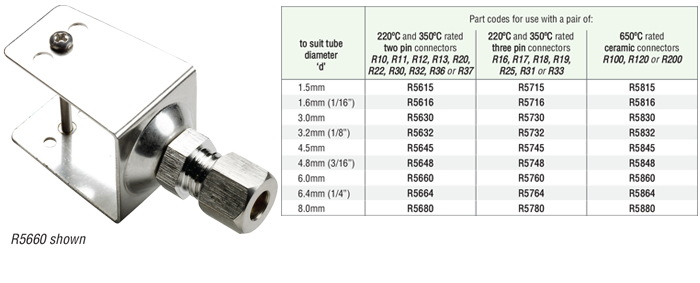

'U' Bracket Compression Tube Adaptor	Application This adaptor compresses onto a mineral insulated cable or metal tube so it may then be attached to a pair of standard connectors. Construction Stainless steel. Notes Bore diameters listed are supplied at 'd' +0.1mm.

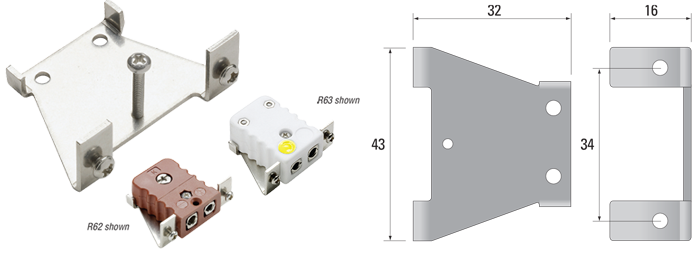

Panel Bracket Adaptor	Application This adaptor allows the user to use a normal jack and adapt it to fit into RSC Series panels for R62 or RCC Series panels for R63. Construction Stainless Steel bracket and screws.
Plastic Locking Clip	Application For extra protection to prevent accidental disconnection of a Standard plug and jack. Can be easily placed over a closed pair of connectors by hand (does not require special tools). Construction Thermoplastic. Temperature Rating 220°C.
Wire Locking Clip	Application These wire clips are used to prevent accidental disconnection of a standard plug and jack. Can be easily placed over a closed pair of connectors by hand (does not require special tools). Construction Stainless Steel Wire.
Protection Boots	Application When using two of these protection boots, the user can prevent moisture or dirt from entering a connected pair of connectors. One boot is required per connector. Construction Silicone Rubber. Temperature Rating 170°C.
Panel Punch	Application This simple device can be used to punch a hole in aluminium, mild steel and some plastics up to 3.5mm thick in order to mount R26, R26H and R32 connectors.

Standard Thermocouple Connectors and Accessories

Features

R11 - Standard Solid Pin Plug rated to 220°C

R10 - Standard Hollow Pin Plug rated to 220°C

R14 - Standard Solid Pin Plug - Quick Wire rated to 220°C

R37 - Standard Solid Pin Panel Plug - Lugged rated to 220°C

R16 - Three Pin Standard Solid Pin Plug rated to 220°C

R91 - Duplex Standard Solid Pin Plug rated to 220°C

R20 - Standard Jack rated to 220°C

R24 - Standard Plug - Quick Wire rated to 220°C

R26 - Standard Panel Jack - Square Flanged with Bracket rated to 220°C

R26H - Standard Panel Jack - Square Flanged with Holes and Bracket rated to 220°C

R28 - Standard Panel Jack - for use with Mounting Kit rated to 220°C

R29 - Standard Panel Jack - Rectangle Flanged with Bracket rated to 220°C

R29S - Standard Panel Jack - Rectangle Flanged with Spring Clip rated to 220°C

R27 - Standard Panel Jack - Lugged - Open Back rated to 220°C

R30 - Standard Panel Jack - Lugged - Closed Back rated to 220°C

R32 - Standard Panel Jack - Round Flanged rated to 220°C

R25 - Standard Jack - Three Pin rated to 220°C

R31 - Standard Panel Jack - Lugged - Three Pin rated to 220°C

R92 - Standard Jack - Duplex rated to 220°C

R13 - Standard High Temperature Solid Pin Plug rated to 350°C

R08 - Standard High Temperature Solid Pin Plug - Quick Wire rated to 350°C

R18 - Standard High Temperature Solid Pin Plug - Three Pin rated to 350°C

R19 - Standard High Temperature Hollow Pin Plug - Three Pin rated to 350°C

R22 - Standard High Temperature Jack rated to 350°C

R09 - Standard High Temperature Jack rated to 350°C

R34 - Standard High Temperature Panel Jack rated to 350°C

R33 - Standard High Temperature Jack - Three Pin rated to 350°C

R35 - Standard High Temperature Panel Jack - Three Pin Rectangle Flanged with Bracket rated to 350°C

R100 - Standard Ceramic Solid Pin Plug rated to 650°C

R130 - Standard Ceramic Solid Pin Plug - Quick Wire rated to 650°C

R200 - Standard Ceramic Jack rated to 650°C

R240 - Standard Ceramic Jack - Quick Wire rated to 650°C

Cable Grommet

Cable and Wire Insert

Cable Bending Protection

Cable Clamp

Internal Crimp/Braze Adaptor Clamp

Internal Compression Tube Adaptor

External 'L' Bracket Crimp/Braze Adaptor

External Compression Tube Adaptor

'U' Bracket Cable and Wire Clamp

'U' Bracket Crimp Adaptor

'U' Bracket Compression Tube Adaptor

Panel Bracket Adaptor

Plastic Locking Clip

Wire Locking Clip

Protection Boots

Panel Punch

RFP / RSP - Anodised Aluminium and Stainless Steel Panels - For use with Flanged 2 Pin Standard Connectors

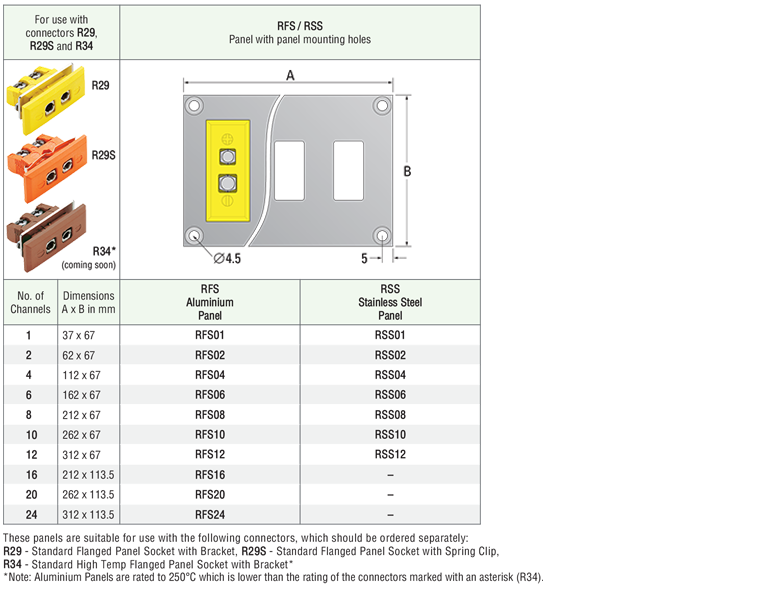

RFS / RSS - Anodised Aluminium and Stainless Steel Panels - For use with Flanged 2 Pin Standard Connectors

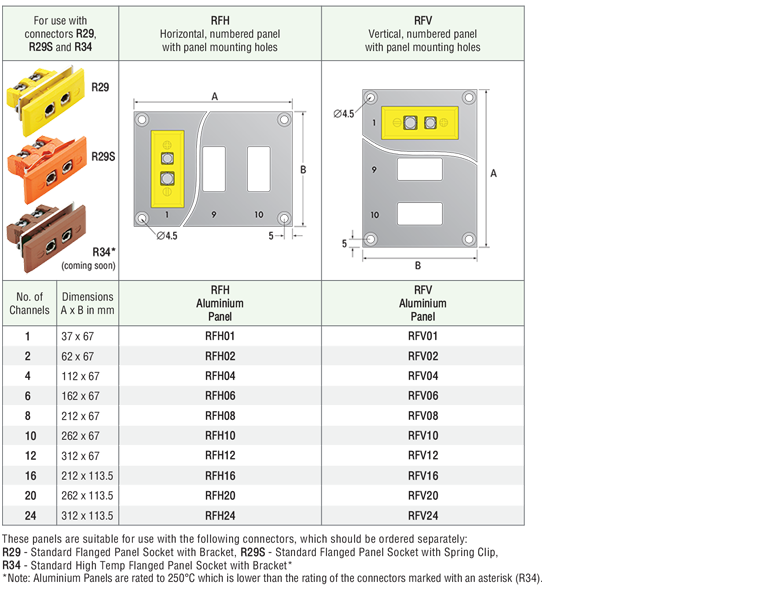

RFH / RFV - Anodised Aluminium Panels - For use with Flanged 2 Pin Standard Connectors

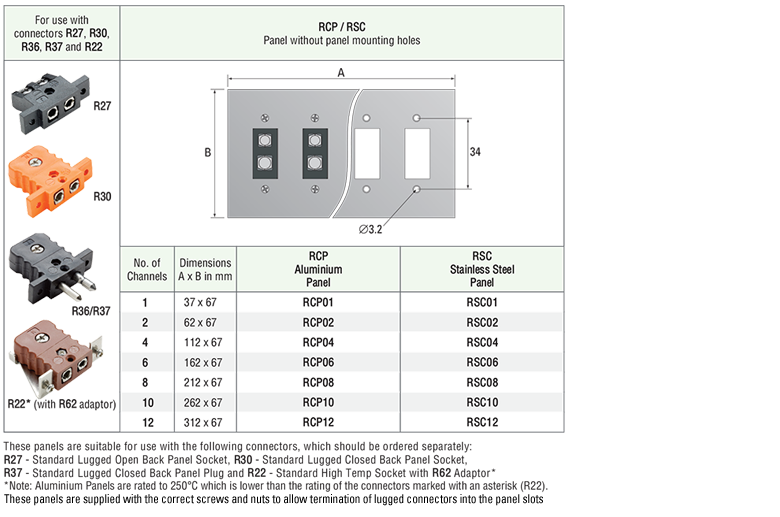

RCP / RSC - Anodised Aluminium and Stainless Steel Panels - For use with Lugged 2 Pin Standard Connectors

RWS - Anodised Aluminium Panel with Mounting Kit - For use with R28 Connectors

RCT / RST - Anodised Aluminium and Stainless Steel Panels - For use with 3 Pin Standard Panel Connectors

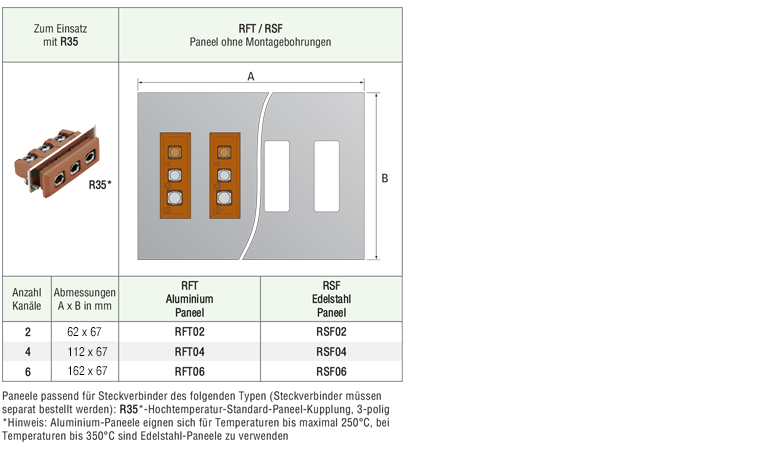

RFT / RSF - Anodised Aluminium and Stainless Steel Panels - For use with 3 Pin Standard Panel Connectors
