+31 85 06 45 612 | Micro Thermocouple Connectors and Accessories
Features
- Micro size - Tiny footprint for applications where space is a premium
- Thermoplastic rated to 220°C
- Available in all thermocouple types
- IEC 60584.3 or ANSI MC96.1 colour codes (DIN and JIS colours are also available)
- Accepts stranded or solid wires up to 0.5mm diameter (0.2mm2)
- High purity thermocouple alloys used for male pins and female socket connections

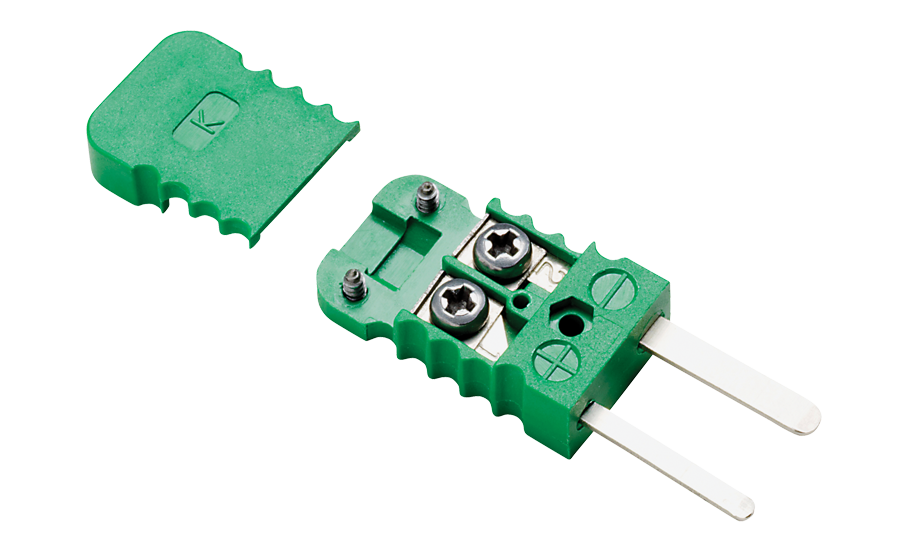

- Easy wiring via lipped washer
M11 - Micro Plug rated to 220°C
|
M20 - Micro Socket rated to 220°C
|
M29 - Micro Panel Socket - Rectangle Flanged with Bracket rated to 220°C
|
Crimp Adaptors - For Micro Connectors
|
Application Stainless steel adaptors may also be brazed. They can also be used to crimp some soft materials such as PVC or PFA wires and cables. Construction |
MFP / MFS - Anodised Aluminium Panels - For use with Flanged Micro Connectors |
IEC 60584.3 |
ANSI MC96.1 |
DIN 43714 |
JIS C 1610 |
