Standard Thermocouple Connectors and Accessories

Features

Choice of body types: Thermoplastic rated to 220°C, Thermosetting plastic rated to 350°C or Ceramic rated to 650°C
Available in all thermocouple types
IEC 60584.3 or ANSI MC96.1 colour codes (DIN and JIS colours are also available)
Accepts stranded or solid wires from 0.2mm to 1.29mm diameter (0.03mm² to 1.3mm²). Or up to 1.63mm diameter (2.1mm²) with washer removed
High purity thermocouple alloys used for male pins and female socket connections
Polarised round pins
Choice of solid or hollow pins
Easy wiring via lipped washer
Single captive screw for quick assembly
Manufactured in accordance with standard EN 50212

R11 - Standard Solid Pin Plug rated to 220°C

Type K IEC Illustrated (R11K-I)

R10 - Standard Hollow Pin Plug rated to 220°C

Type K ANSI Illustrated (R10K-A)

R14 - Standard Solid Pin Plug - Quick Wire rated to 220°C

Type N IEC Illustrated (R14N-I)

R15 - Standard Hollow Pin Plug - Quick Wire rated to 220°C

Type R/S IEC Illustrated (R15RS-I)

R37 - Standard Solid Pin Panel Plug - Lugged rated to 220°C

Type T IEC Illustrated (R37T-I). Recommended cutout: 13mm x 26mm

R36 - Standard Hollow Pin Panel Plug - Lugged rated to 220°C

Type E IEC Illustrated (R36E-I). Recommended cutout: 13mm x 26mm

R16 - Three Pin Standard Solid Pin Plug rated to 220°C

Type CU Illustrated (R16CU)

R17 - Three Pin Standard Hollow Pin Plug rated to 220°C

Type CU Illustrated (R17CU)

R91 - Duplex Standard Solid Pin Plug rated to 220°C

Type K IEC Illustrated (R91K-I)

R90 - Duplex Standard Hollow Pin Plug rated to 220°C

Type N IEC Illustrated (R90N-I)

R20 - Standard Socket rated to 220°C

Type K IEC Illustrated (R20K-I)

R24 - Standard Plug - Quick Wire rated to 220°C

Type T IEC Illustrated (R24T-I)

R26 - Standard Panel Socket - Square Flanged with Bracket rated to 220°C

Type J IEC Illustrated (R26J-I)

R26H - Standard Panel Socket - Square Flanged with Holes and Bracket rated to 220°C

Type R/S IEC Illustrated (R26HK-I)

R28 - Standard Panel Socket - for use with Mounting Kit rated to 220°C

Type K ANSI Illustrated (F29K-A) - see accessories for mounting kit. Recommended cutout 13mm x 25.8mm

R29 - Standard Panel Socket - Rectangle Flanged with Bracket rated to 220°C

Type K IEC Illustrated (R29K-I). Recommended cutout: 13mm x 26mm.

R29S - Standard Panel Socket - Rectangle Flanged with Spring Clip rated to 220°C

Type N IEC Illustrated (R29SN-I). Recommended cutout: 13mm x 26mm

R27 - Standard Panel Socket - Lugged - Open Back rated to 220°C

Type J IEC Illustrated (R27J-I). Recommended cutout: 13mm x 26mm

R30 - Standard Panel Socket - Lugged - Closed Back rated to 220°C

Type N IEC Illustrated (R30N-I). Recommended cutout: 13mm x 26mm

R32 - Standard Panel Socket - Round Flanged rated to 220°C

Type K ANSI Illustrated (R32K-A)

R25 - Standard Socket - Three Pin rated to 220°C

Type CU Illustrated (R25CU)

R31 - Standard Panel Socket - Lugged - Three Pin rated to 220°C

Type T IEC Illustrated (R31T-I). Recommended cutout: 13.5mm x 37mm

R92 - Standard Socket - Duplex rated to 220°C

Type K IEC Illustrated (R92K-I)

R13 - Standard High Temperature Solid Pin Plug rated to 350°C

Type K Illustrated (R13K)

R12 - Standard High Temperature Hollow Pin Plug rated to 350°C

Type T Illustrated (R12T)

R08 - Standard High Temperature Solid Pin Plug - Quick Wire rated to 350°C

Type K Illustrated (R08K)

R07 - Standard High Temperature Hollow Pin Plug - Quick Wire rated to 350°C

Type K Illustrated (R07K)

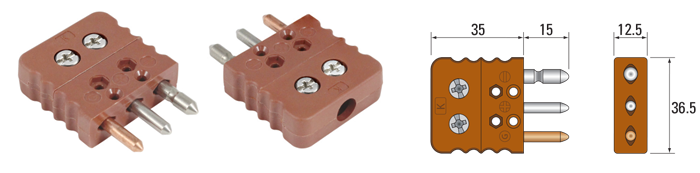

R18 - Standard High Temperature Solid Pin Plug - Three Pin rated to 350°C

Type K Illustrated (R18K)

R19 - Standard High Temperature Hollow Pin Plug - Three Pin rated to 350°C

Type K Illustrated (R19K)

R22 - Standard High Temperature Socket rated to 350°C

Type K Illustrated (R22K)

R09 - Standard High Temperature Socket rated to 350°C

Type K Illustrated (R09K)

R34 - Standard High Temperature Panel Socket rated to 350°C

Type K Illustrated (R34K). Recommended cutout: 13mm x 26mm

R33 - Standard High Temperature Socket - Three Pin rated to 350°C

Type K Illustrated (R33K)

R35 - Standard High Temperature Panel Socket - Three Pin Rectangle Flanged with Bracket rated to 350°C

Type K Illustrated (R35K). Recommended cutout: 13mm x 37mm

R100 - Standard Ceramic Solid Pin Plug rated to 650°C

Type K IEC Illustrated (R100K-I)

R120 - Standard Ceramic Hollow Pin Plug rated to 650°C

Type K ANSI Illustrated (R120K-A)

R130 - Standard Ceramic Solid Pin Plug - Quick Wire rated to 650°C

Type K IEC Illustrated (R130K-I)

R140 - Standard Ceramic Hollow Pin Plug - Quick Wire rated to 650°C

Type K ANSI Illustrated (R140K-A)

R200 - Standard Ceramic Socket rated to 650°C

Type K IEC Illustrated (R200K-I)

R240 - Standard Ceramic Socket - Quick Wire rated to 650°C

Type K IEC Illustrated (R240K-I)

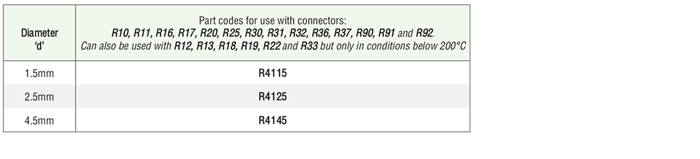

Cable Grommet	Application The cable grommet is fitted into the exit hole of the connector which prevents dirt or moisture entering the connector when used with wires or cable. Construction Silicone rubber ring with collar, slit for easy use. Compresses on the wire or cable when connector is fully assembled. Temperature Rating 200°C.

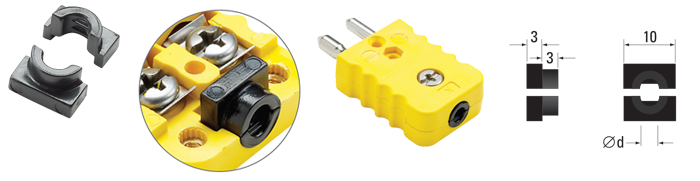

Cable and Wire Insert	Application Fitted inside the connector, the insert allows the user to hold wires and cables in place, providing a strong grip without the insert protruding outside of the connector. Construction Polypropylene for either round or oval cables. Temperature Rating 110°C.

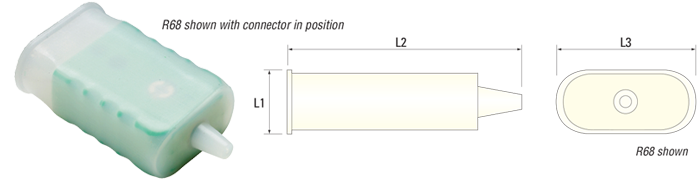

Cable Bending Protection	Application Provides bending protection for small wires and cables when used with standard connectors. Reduces potential mechanical damage to the cable. The conical end can be cut back to suit the cable. Construction Silicone Rubber. Temperature Rating 200°C.
Cable Clamp	Application Allows the user to clamp wires and cables in place. Construction Stainless steel including stainless steel screws. Temperature Rating 800°C (only limited by the temperature rating of the cable or connector it is attached to).

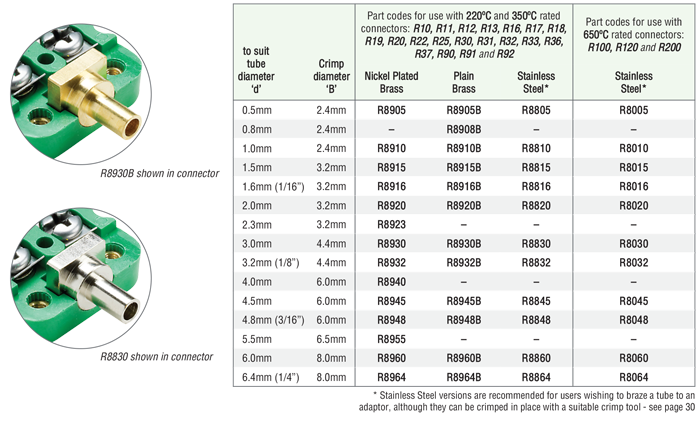

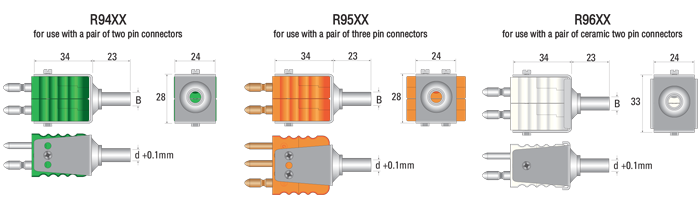

Internal Crimp/Braze Adaptor Clamp	Application This adaptor can be crimped onto a mineral insulated cable or metal tube so it may then be attached to a standard connector. A crimp tool is available if required. Stainless steel adaptors may also be brazed. Brass adaptors can also be used to crimp some soft materials such as PVC or PFA wires and cables. Construction For 220°C and 350°C range connectors: Nickel Plated Brass, Brass or Stainless Steel. For Ceramic connectors: Stainless Steel only. Notes Bore diameters listed are supplied at 'd' +0.1mm.

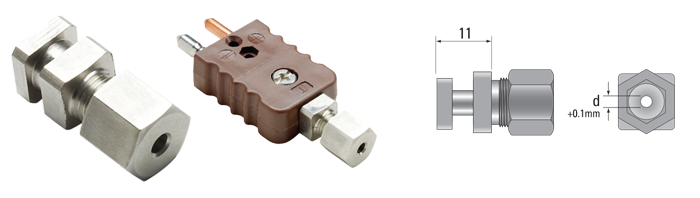

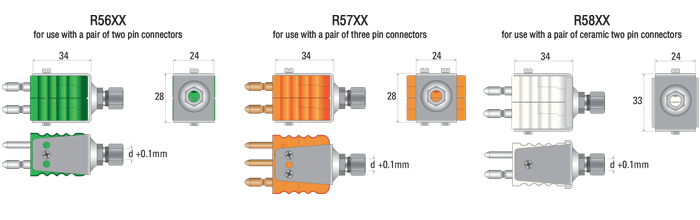

Internal Compression Tube Adaptor	Application This adaptor compresses onto a mineral insulated cable or metal tube so it may then be attached to a standard connector. For use with 220°C and 350°C plastic and 650°C ceramic versions. Construction All Stainless Steel parts. Notes Bore diameters listed are supplied at 'd' +0.1mm.

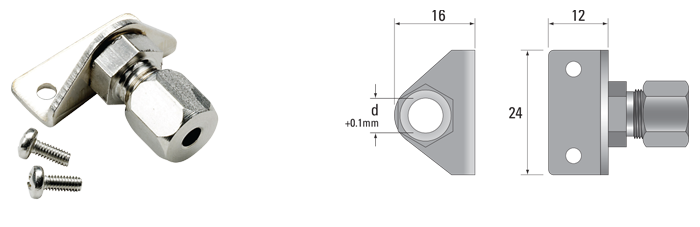

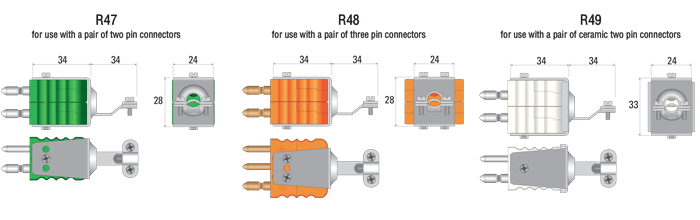

External 'L' Bracket Crimp/Braze Adaptor	Application This bracket adaptor crimps or brazes onto a mineral insulated cable or metal tube so it may then be attached to a standard connector. Provides a stronger solution than the Internal Crimp/Braze Adaptor. Construction Stainless Steel. Notes Bore diameters listed are supplied at 'd' +0.1mm.
External Compression Tube Adaptor	Application This adaptor compresses onto a mineral insulated cable or metal tube so it may then be attached to a standard connector. Provides a stronger solution than the Internal Compression Tube Adaptor. Construction All Stainless Steel parts with Brass olive. Notes Bore diameters listed are supplied at 'd' +0.1mm.
'U' Bracket Cable and Wire Clamp	Application Allows the user to attach a pair of standard connectors together and use as a cable and wire clamp. Construction Stainless steel including stainless steel screws.
'U' Bracket Crimp Adaptor	Application This adaptor crimps onto a mineral insulated cable or metal tube so it may then be attached to a pair of standard connectors. A crimp tool is also available for 8.0mm crimp diameter. Construction Stainless steel. Notes Bore diameters listed are supplied at 'd' +0.1mm.
'U' Bracket Compression Tube Adaptor	Application This adaptor compresses onto a mineral insulated cable or metal tube so it may then be attached to a pair of standard connectors. Construction Stainless steel. Notes Bore diameters listed are supplied at 'd' +0.1mm.

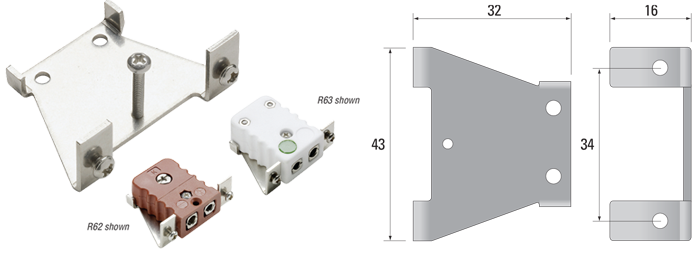

Panel Bracket Adaptor	Application This adaptor allows the user to use a normal socket and adapt it to fit into RSC Series panels for R62 or RCC Series panels for R63. Construction Stainless Steel bracket and screws.

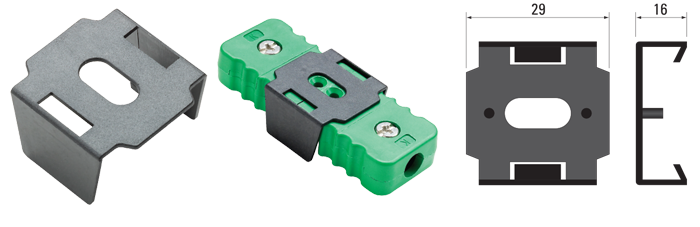

Plastic Locking Clip	Application For extra protection to prevent accidental disconnection of a Standard plug and socket. Can be easily placed over a closed pair of connectors by hand (does not require special tools). Construction Thermoplastic. Temperature Rating 220°C.
Wire Locking Clip	Application These wire clips are used to prevent accidental disconnection of a standard plug and socket. Can be easily placed over a closed pair of connectors by hand (does not require special tools). Construction Stainless Steel Wire.
Protection Boots	Application When using two of these protection boots, the user can prevent moisture or dirt from entering a connected pair of connectors. One boot is required per connector. Construction Silicone Rubber. Temperature Rating 170°C.
Panel Punch	Application This simple device can be used to punch a hole in aluminium, mild steel and some plastics up to 3.5mm thick in order to mount R26, R26H and R32 connectors.

Standard Thermocouple Connectors and Accessories

Features

R11 - Standard Solid Pin Plug rated to 220°C

R10 - Standard Hollow Pin Plug rated to 220°C

R14 - Standard Solid Pin Plug - Quick Wire rated to 220°C

R15 - Standard Hollow Pin Plug - Quick Wire rated to 220°C

R37 - Standard Solid Pin Panel Plug - Lugged rated to 220°C

R36 - Standard Hollow Pin Panel Plug - Lugged rated to 220°C

R16 - Three Pin Standard Solid Pin Plug rated to 220°C

R17 - Three Pin Standard Hollow Pin Plug rated to 220°C

R91 - Duplex Standard Solid Pin Plug rated to 220°C

R90 - Duplex Standard Hollow Pin Plug rated to 220°C

R20 - Standard Socket rated to 220°C

R24 - Standard Plug - Quick Wire rated to 220°C

R26 - Standard Panel Socket - Square Flanged with Bracket rated to 220°C

R26H - Standard Panel Socket - Square Flanged with Holes and Bracket rated to 220°C

R28 - Standard Panel Socket - for use with Mounting Kit rated to 220°C

R29 - Standard Panel Socket - Rectangle Flanged with Bracket rated to 220°C

R29S - Standard Panel Socket - Rectangle Flanged with Spring Clip rated to 220°C

R27 - Standard Panel Socket - Lugged - Open Back rated to 220°C

R30 - Standard Panel Socket - Lugged - Closed Back rated to 220°C

R32 - Standard Panel Socket - Round Flanged rated to 220°C

R25 - Standard Socket - Three Pin rated to 220°C

R31 - Standard Panel Socket - Lugged - Three Pin rated to 220°C

R92 - Standard Socket - Duplex rated to 220°C

R13 - Standard High Temperature Solid Pin Plug rated to 350°C

R12 - Standard High Temperature Hollow Pin Plug rated to 350°C

R08 - Standard High Temperature Solid Pin Plug - Quick Wire rated to 350°C

R07 - Standard High Temperature Hollow Pin Plug - Quick Wire rated to 350°C

R18 - Standard High Temperature Solid Pin Plug - Three Pin rated to 350°C

R19 - Standard High Temperature Hollow Pin Plug - Three Pin rated to 350°C

R22 - Standard High Temperature Socket rated to 350°C

R09 - Standard High Temperature Socket rated to 350°C

R34 - Standard High Temperature Panel Socket rated to 350°C

R33 - Standard High Temperature Socket - Three Pin rated to 350°C

R35 - Standard High Temperature Panel Socket - Three Pin Rectangle Flanged with Bracket rated to 350°C

R100 - Standard Ceramic Solid Pin Plug rated to 650°C

R120 - Standard Ceramic Hollow Pin Plug rated to 650°C

R130 - Standard Ceramic Solid Pin Plug - Quick Wire rated to 650°C

R140 - Standard Ceramic Hollow Pin Plug - Quick Wire rated to 650°C

R200 - Standard Ceramic Socket rated to 650°C

R240 - Standard Ceramic Socket - Quick Wire rated to 650°C

Cable Grommet

Cable and Wire Insert

Cable Bending Protection

Cable Clamp

Internal Crimp/Braze Adaptor Clamp

Internal Compression Tube Adaptor

External 'L' Bracket Crimp/Braze Adaptor

External Compression Tube Adaptor

'U' Bracket Cable and Wire Clamp

'U' Bracket Crimp Adaptor

'U' Bracket Compression Tube Adaptor

Panel Bracket Adaptor

Plastic Locking Clip

Wire Locking Clip

Protection Boots

Panel Punch

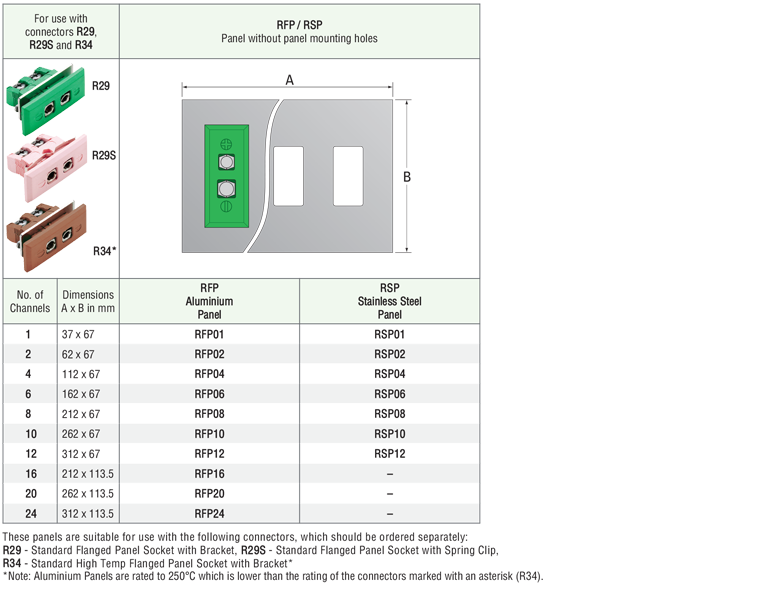

RFP / RSP - Anodised Aluminium and Stainless Steel Panels - For use with Flanged 2 Pin Standard Connectors

RFS / RSS - Anodised Aluminium and Stainless Steel Panels - For use with Flanged 2 Pin Standard Connectors

RFH / RFV - Anodised Aluminium Panels - For use with Flanged 2 Pin Standard Connectors

RCP / RSC - Anodised Aluminium and Stainless Steel Panels - For use with Lugged 2 Pin Standard Connectors

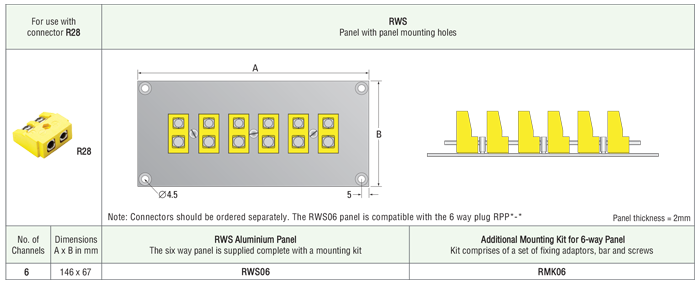

RWS - Anodised Aluminium Panel with Mounting Kit - For use with R28 Connectors
