Miniature Thermocouple Connectors and Accessories

Features

  • Choice of body types: Thermoplastic rated to 425°F, Thermosetting plastic rated to 660°F or Ceramic rated to 1200°F
  • Available in all thermocouple types
  • ANSI MC96.1 or IEC 60584.3 color codes (DIN and JIS colors are also available)
  • Accepts stranded or solid wires up to 0.032" diameter (20 AWG)
  • High purity thermocouple alloys used for male pins and female jack connections
  • Polarised flat pins
  • Easy wiring via lipped washer

F11 - Miniature Plug rated to 425°F

Type K ANSI Illustrated (F11K-A)

F14 - Miniature Plug - Quick Wire rated to 425°F

Type T ANSI Illustrated (F14T-A)

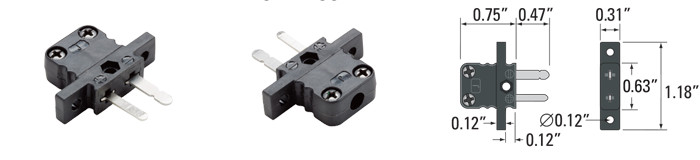

F37 - Miniature Panel Plug - Lugged rated to 425°F

Type J ANSI Illustrated (F37J-A). Recommended cutout: 0.33" x 0.65"

F16 - Three Pin Miniature Plug rated to 425°F

Type CU Illustrated (F16CU)

F91 - Duplex Miniature Plug rated to 425°F

Type N ANSI Illustrated (F91N-A)

F20 - Miniature Jack rated to 425°F

Type K ANSI Illustrated (F20K-A)

F24 - Miniature Jack - Quick Wire rated to 425°F

Type R/S ANSI Illustrated (F24R/S-A)

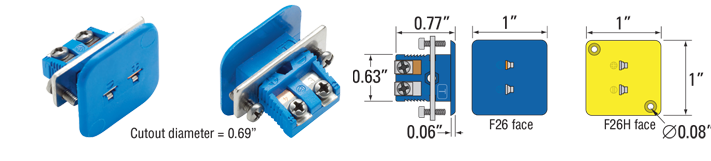

F26 - Miniature Panel Jack - Square Flanged with Bracket rated to 425°F

Type T ANSI Illustrated (F26T-A). A version with two mounting holes is also available and is designated F26H

F29 - Miniature Panel Jack - Rectangle Flanged with Bracket rated to 425°F

Type J ANSI illustrated (F29J-A). Recommended cutout: 0.31" x 0.65"

F29S - Miniature Panel Jack - Rectangle Flanged with Spring Clip rated to 425°F

Type N ANSI illustrated (F29SN-A). Recommended cutout: 0.31" x 0.65"

F27 - Miniature Panel Jack - Lugged - Open Back rated to 425°F

Type R/S ANSI Illustrated (F2RS-A). Recommended cutout: 0.33" x 0.65"

F30 - Miniature Panel Jack - Lugged - Closed Back rated to 425°F

Type E ANSI Illustrated (F30E-A). Recommended cutout: 0.33" x 0.65"

F32 - Miniature Panel Jack - Round Flanged rated to 425°F

Type T ANSI Illustrated (F32T-A). Cutout diameter = 0.89"

F21 - Miniature Jack - PCB Bottom Mounting rated to 425°F

Type N ANSI Illustrated (F21N-A)

F23 - Miniature Jack - PCB Rear Mounting rated to 425°F

Type R/S ANSI Illustrated (F23RS-A)

F38 - Miniature Jack - PCB Side Mounting rated to 425°F

Type J ANSI Illustrated (F38J-A)

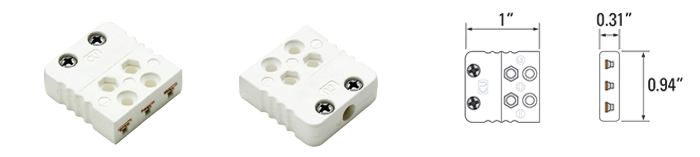

F25 - Miniature Jack - Three Pin rated to 425°F

Type CU Illustrated (F25CU)

F31 - Miniature Panel Jack - Lugged - Three Pin rated to 425°F

Type CU Illustrated (F31CU)

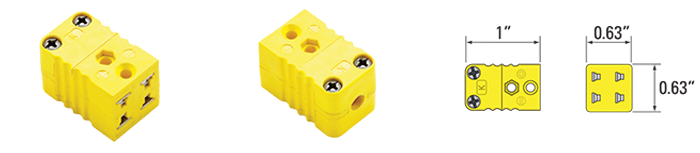

F92 - Miniature Jack - Duplex rated to 425°F

Type K ANSI Illustrated (F92K-A)

F13 - Miniature High Temperature Plug rated to 660°F

Type K Illustrated (F13K)

F08 - Miniature High Temperature Plug - Quick Wire rated to 660°F

Type K Illustrated (F08K)

F18 - Miniature High Temperature Plug - Three Pin rated to 660°F

Type K Illustrated (F18K)

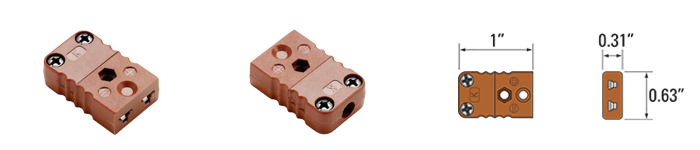

F22 - Miniature High Temperature Jack rated to 660°F

Type K Illustrated (F22K)

F09 - Miniature High Temperature Jack rated to 660°F

Type K Illustrated (F09K)

F34 - Miniature High temperature Panel Jack rated to 660°F

Type K Illustrated (F34K). Recommended cutout: 0.31" x 0.65"

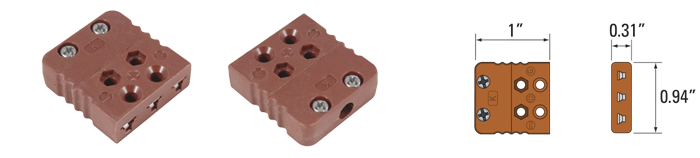

F33 - Miniature High Temperature Jack - Three Pin rated to 660°F

Type K Illustrated (F33K)

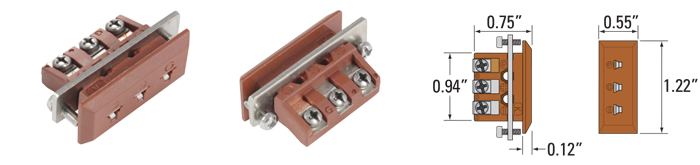

F35 - Miniature High Temperature Panel Jack - Three Pin Rectangle Flanged with Bracket rated to 660°F

Type K Illustrated (F35K). Recommended cutout: 0.33" x 0.96"

F100 - Miniature Ceramic Plug rated to 1200°F

Type K ANSI Illustrated (F100K-A)

F140 - Miniature Ceramic Plug - Quick Wire rated to 1200°F

Type K ANSI Illustrated (F140K-A)

F200 - Miniature Ceramic Jack rated to 1200°F

Type K ANSI Illustrated (F200K-A)

F240 - Miniature Ceramic Jack - Quick Wire rated to 1200°F

Type K ANSI Illustrated (F240K-A)

Cable Grommet

Application
The cable grommet is fitted into the exit hole of the connector which prevents dirt or moisture entering the connector when used with wires or cable.

Construction
Silicone rubber ring with collar, slit for easy use. Compresses on the wire or cable when connector is fully assembled.

Temperature Rating
390°F.

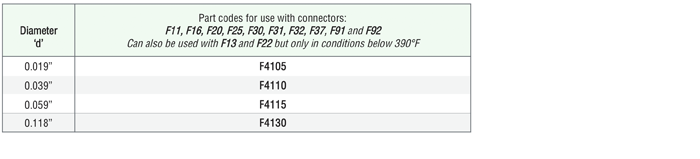

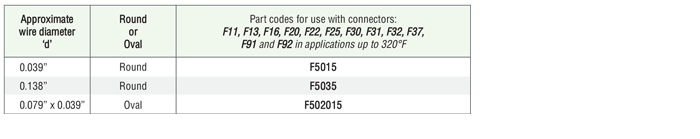

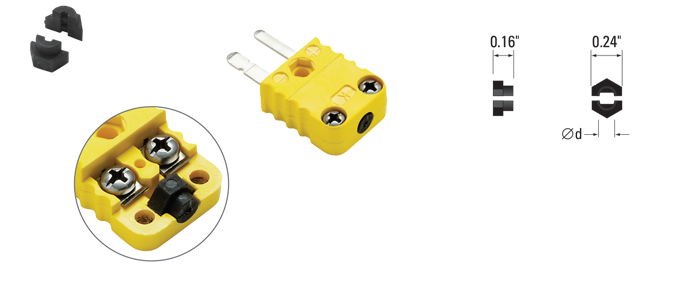

Cable and Wire Insert

Application
Fitted inside the connector, the insert allows the user to hold wires and cables in place, providing a strong grip without the insert protruding outside of the connector.

Construction
Polypropylene for either round or oval cables.

Temperature Rating
230°F.

Cable Bending Protection

Application
Provides bending protection for small wires and cables when used with miniature connectors. Reduces potential mechanical damage to the cable. The conical end can be cut back to suit the cable.

Construction
Silicone Rubber.

Temperature Rating
390°F.

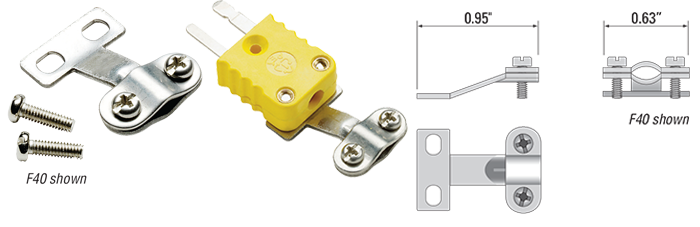

Cable Clamp

Application
Allows the user to clamp wires and cables in place.

Construction
Stainless steel including stainless steel screws.

Temperature Rating
1470°F (only limited by the temperature rating of the cable or connector it is attached to).

Internal Crimp/Braze Adaptor Clamp

Application
This adaptor can be crimped onto a mineral insulated cable or metal tube so it may then be attached to a miniature connector. A crimp tool is available if required.

Stainless steel adaptors may also be brazed. Brass adaptors can also be used to crimp some soft materials such as PVC or PFA wires and cables.

Construction
For 425°F and 660°F range connectors: Nickel Plated Brass, Brass or Stainless Steel.

For Ceramic connectors: Stainless Steel only.

Notes
Bore diameters listed are supplied at 'd' +0.004".

Internal Compression Tube Adaptor

Application
This adaptor compresses onto a mineral insulated cable or metal tube so it may then be attached to a miniature connector.

For use with 425°F and 660°F versions. Not suitable for Ceramic connectors.

Construction
All Stainless Steel parts.

Notes
Bore diameters listed are supplied at 'd' +0.004".

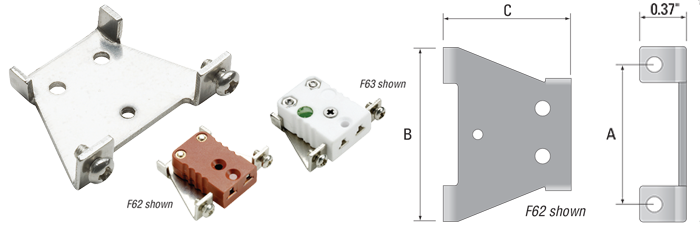

Panel Bracket Adaptor

Application
This adaptor allows the user to use a normal jack and adapt it to fit into panels.

Construction
Stainless Steel bracket and screws.

Plastic Locking Clip

Application
For extra protection to prevent accidental disconnection of a miniature plug and jack. Can be easily placed over a closed pair of connectors by hand (does not require special tools).

Construction
Thermoplastic.

Temperature Rating
425°F.

Protection Boots

Application
When using two of these protection boots, the user can prevent moisture or dirt from entering a connected pair of connectors. One boot is required per connector.

Construction
Silicone Rubber.

Temperature Rating
170°C.

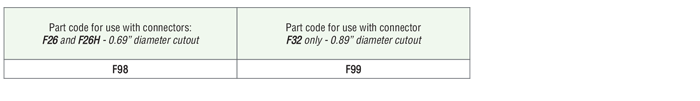

Panel Punch

Application
This simple device can be used to punch a hole in aluminum, mild steel and some plastics up to 0.138" thick in order to mount F26, F26H and F32 connectors.

FFP / FSP - Anodised aluminum and Stainless Steel Panels - For use with Flanged 2 Pin Mini Connectors

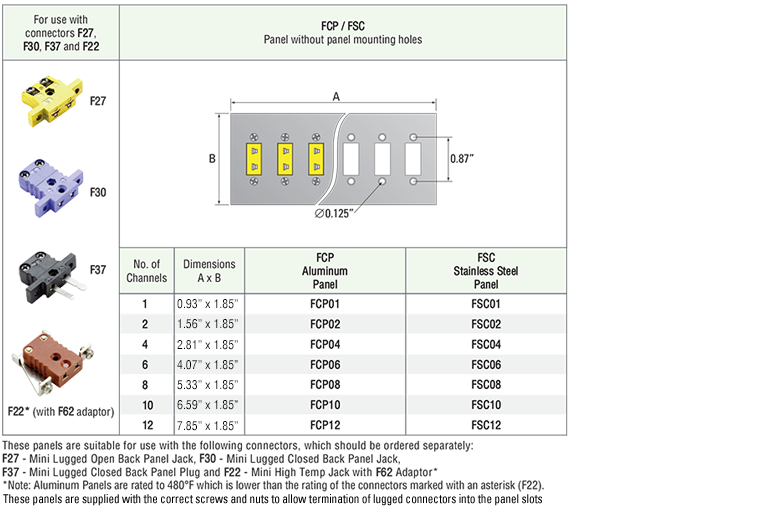

FCP / FSC - Anodised aluminum and Stainless Steel Panels - For use with Lugged 2 Pin Mini Connectors

FCT / FST - Anodised aluminum and Stainless Steel Panels - For use with 3 Pin Mini Panel Connectors

FFT / FSF - Anodised aluminum and Stainless Steel Panels - For use with 3 Pin Mini Panel Connectors

FCC - Stainless Steel Panels - For use with Mini Ceramic Connectors

ANSI MC96.1

IEC 60584.3

DIN 43714

JIS C 1610
