Standard Thermocouple Connectors and Accessories

R10 - Standard Hollow Pin Plug rated to 425°F

R11 - Standard Solid Pin Plug rated to 425°F

R15 - Standard Hollow Pin Plug - Quick Wire rated to 425°F

R14 - Standard Solid Pin Plug - Quick Wire rated to 425°F

R36 - Standard Hollow Pin Panel Plug - Lugged rated to 425°F

R37 - Standard Solid Pin Panel Plug - Lugged rated to 425°F

R17 - Three Pin Standard Hollow Pin Plug rated to 425°F

R16 - Three Pin Standard Solid Pin Plug rated to 425°F

R90 - Duplex Standard Hollow Pin Plug rated to 425°F

R91 - Duplex Standard Solid Pin Plug rated to 425°F

R20 - Standard Jack rated to 425°F

R24 - Standard Plug - Quick Wire rated to 425°F

R26 - Standard Panel Jack - Square Flanged with Bracket rated to 425°F

R26H - Standard Panel Jack - Square Flanged with Holes and Bracket rated to 425°F

R28 - Standard Panel Jack - for use with Mounting Kit rated to 425°F

R29 - Standard Panel Jack - Rectangle Flanged with Bracket rated to 425°F

R29S - Standard Panel Jack - Rectangle Flanged with Spring Clip rated to 425°F

R27 - Standard Panel Jack - Lugged - Open Back rated to 425°F

R30 - Standard Panel Jack - Lugged - Closed Back rated to 425°F

R32 - Standard Panel Jack - Round Flanged rated to 425°F

R25 - Standard Jack - Three Pin rated to 425°F

R31 - Standard Panel Jack - Lugged - Three Pin rated to 425°F

R92 - Standard Jack - Duplex rated to 425°F

R12 - Standard High Temperature Hollow Pin Plug rated to 660°F

R13 - Standard High Temperature Solid Pin Plug rated to 660°F

R07 - Standard High Temperature Hollow Pin Plug - Quick Wire rated to 660°F

R08 - Standard High Temperature Solid Pin Plug - Quick Wire rated to 660°F

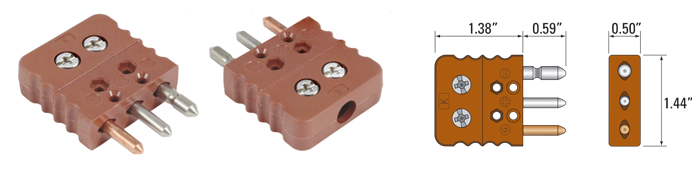

R18 - Standard High Temperature Solid Pin Plug - Three Pin rated to 660°F

R19 - Standard High Temperature Hollow Pin Plug - Three Pin rated to 660°F

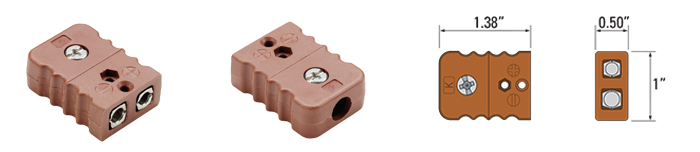

R22 - Standard High Temperature Jack rated to 660°F

R09 - Standard High Temperature Jack rated to 660°F

R34 - Standard High Temperature Panel Jack rated to 660°F

R33 - Standard High Temperature Jack - Three Pin rated to 660°F

R35 - Standard High Temperature Panel Jack - Three Pin Rectangle Flanged with Bracket rated to 660°F

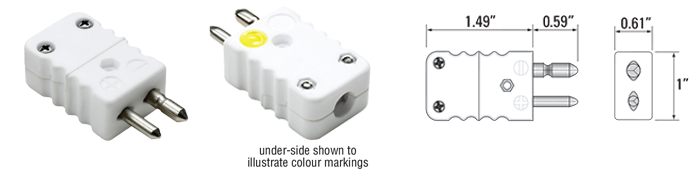

R120 - Standard Ceramic Hollow Pin Plug rated to 1200°F

R100 - Standard Ceramic Solid Pin Plug rated to 1200°F

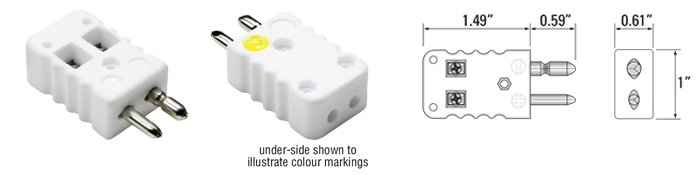

R140 - Standard Ceramic Hollow Pin Plug - Quick Wire rated to 1200°F

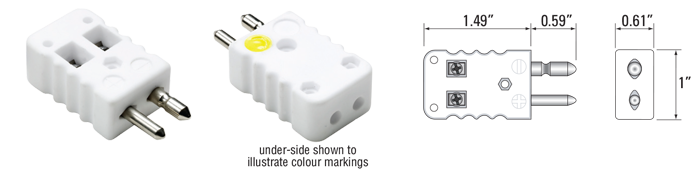

R130 - Standard Ceramic Solid Pin Plug - Quick Wire rated to 1200°F

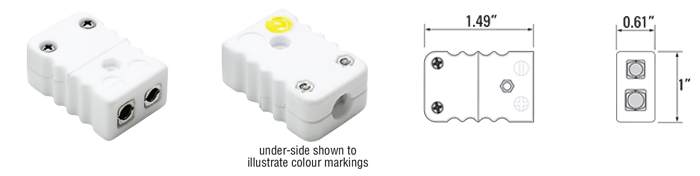

R200 - Standard Ceramic Jack rated to 1200°F

R240 - Standard Ceramic Jack - Quick Wire rated to 1200°F

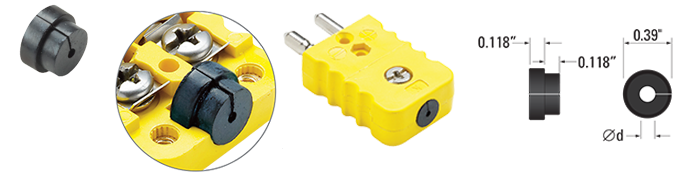

Cable Grommet

Application
The cable grommet is fitted into the exit hole of the connector which prevents dirt or moisture entering the connector when used with wires or cable.

Construction
Silicone rubber ring with collar, slit for easy use. Compresses on the wire or cable when connector is fully assembled.

Temperature Rating
390°F.

Cable and Wire Insert

Application
Fitted inside the connector, the insert allows the user to hold wires and cables in place, providing a strong grip without the insert protruding outside of the connector.

Construction
Polypropylene for either round or oval cables.

Temperature Rating
230°F.

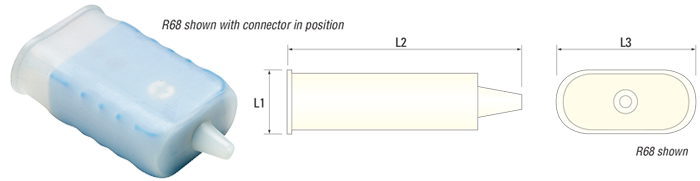

Cable Bending Protection

Application
Provides bending protection for small wires and cables when used with standard connectors. Reduces potential mechanical damage to the cable. The conical end can be cut back to suit the cable.

Construction
Silicone Rubber.

Temperature Rating
390°F.

Cable Clamp

Application
Allows the user to clamp wires and cables in place.

Construction
Stainless steel including stainless steel screws.

Temperature Rating
1470°F (only limited by the temperature rating of the cable or connector it is attached to).

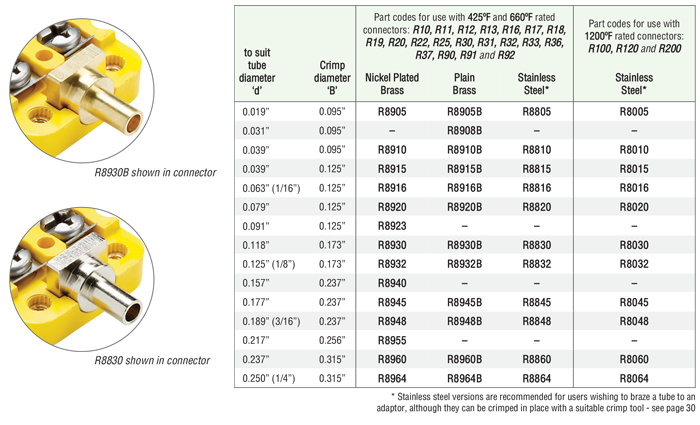

Internal Crimp/Braze Adaptor Clamp

Application
This adaptor can be crimped onto a mineral insulated cable or metal tube so it may then be attached to a standard connector. A crimp tool is available if required.

Stainless steel adaptors may also be brazed. Brass adaptors can also be used to crimp some soft materials such as PVC or PFA wires and cables.

Construction
For 425°F and 660°F range connectors: Nickel Plated Brass, Brass or Stainless Steel.

For Ceramic connectors: Stainless Steel only.

Notes
Bore diameters listed are supplied at 'd' +0.004".

Internal Compression Tube Adaptor

Application
This adaptor compresses onto a mineral insulated cable or metal tube so it may then be attached to a standard connector.

For use with 425°F and 660°F plastic and 1200°F ceramic versions.

Construction
All Stainless Steel parts.

Notes
Bore diameters listed are supplied at 'd' +0.004".

External 'L' Bracket Crimp/Braze Adaptor

Application
This bracket adaptor crimps or brazes onto a mineral insulated cable or metal tube so it may then be attached to a standard connector. Provides a stronger solution than the Internal Crimp/Braze Adaptor.

Construction
Stainless Steel.

Notes
Bore diameters listed are supplied at 'd' +0.004".

External Compression Tube Adaptor

Application
This adaptor compresses onto a mineral insulated cable or metal tube so it may then be attached to a standard connector. Provides a stronger solution than the Internal Compression Tube Adaptor.

Construction
All Stainless Steel parts with Brass olive.

Notes
Bore diameters listed are supplied at 'd' +0.004".

'U' Bracket Cable and Wire Clamp

Application
Allows the user to attach a pair of standard connectors together and use as a cable and wire clamp.

Construction
Stainless steel including stainless steel screws.

'U' Bracket Crimp Adaptor

Application
This adaptor crimps onto a mineral insulated cable or metal tube so it may then be attached to a pair of standard connectors. A crimp tool is also available for 8.0mm crimp diameter.

Construction
Stainless steel.

Notes
Bore diameters listed are supplied at 'd' +0.004".

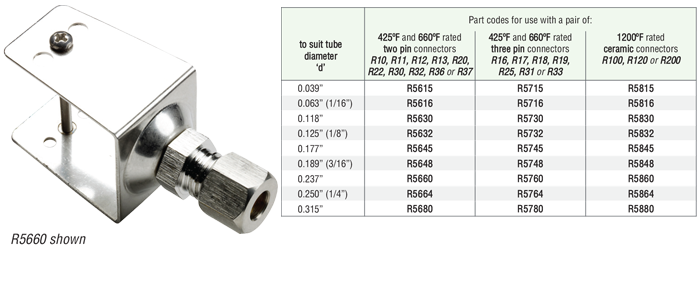

'U' Bracket Compression Tube Adaptor

Application
This adaptor compresses onto a mineral insulated cable or metal tube so it may then be attached to a pair of standard connectors.

Construction
Stainless steel.

Notes
Bore diameters listed are supplied at 'd' +0.004".

Panel Bracket Adaptor

Application
This adaptor allows the user to use a normal jack and adapt it to fit into RSC Series panels for R62 or RCC Series panels for R63.

Construction
Stainless Steel bracket and screws.

Plastic Locking Clip

Application
For extra protection to prevent accidental disconnection of a Standard plug and jack. Can be easily placed over a closed pair of connectors by hand (does not require special tools).

Construction
Thermoplastic.

Temperature Rating
425°F.

Wire Locking Clip

Application
These wire clips are used to prevent accidental disconnection of a standard plug and jack. Can be easily placed over a closed pair of connectors by hand (does not require special tools).

Construction
Stainless Steel Wire.

Protection Boots

Application
When using two of these protection boots, the user can prevent moisture or dirt from entering a connected pair of connectors. One boot is required per connector.

Construction
Silicone Rubber.

Temperature Rating
170°C.

Panel Punch

Application
This simple device can be used to punch a hole in aluminum, mild steel and some plastics up to 3.5mm thick in order to mount R26, R26H and R32 connectors.

RFP / RSP - Anodised aluminum and Stainless Steel Panels - For use with Flanged 2 Pin Standard Connectors

RFS / RSS - Anodised aluminum and Stainless Steel Panels - For use with Flanged 2 Pin Standard Connectors

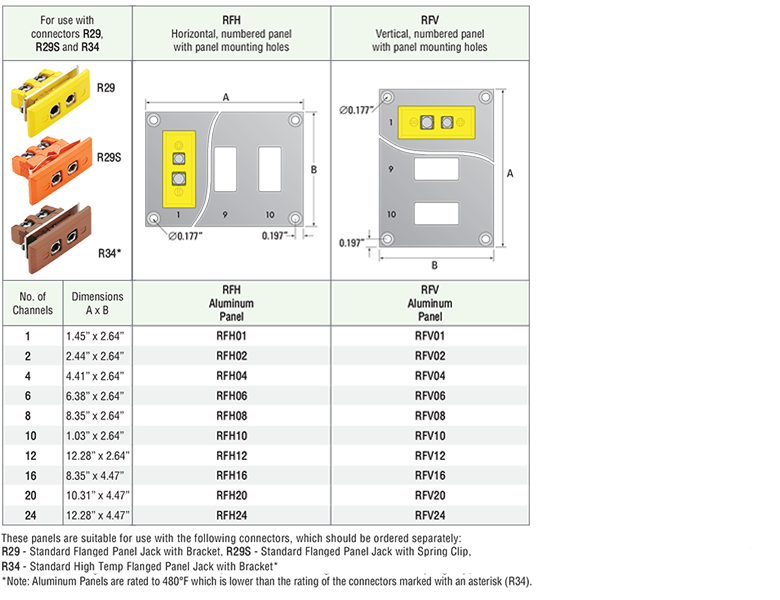

RFH / RFV - Anodised aluminum Panels - For use with Flanged 2 Pin Standard Connectors

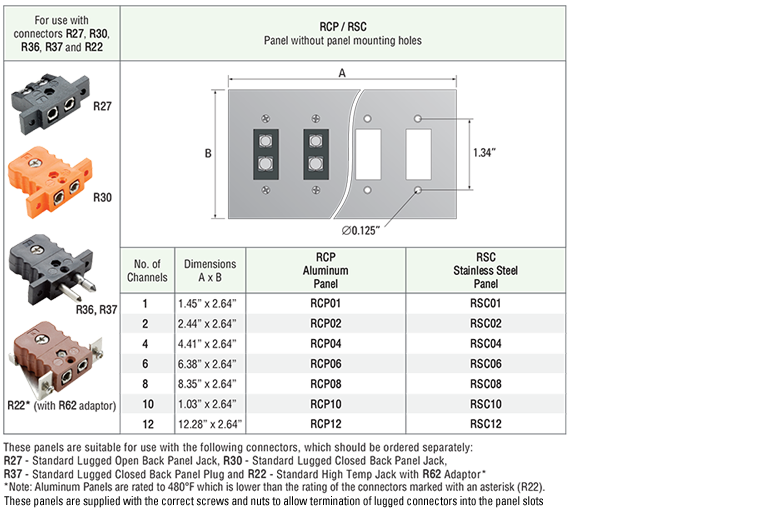

RCP / RSC - Anodised aluminum and Stainless Steel Panels - For use with Lugged 2 Pin Standard Connectors

RWS - Anodised aluminum Panel with Mounting Kit - For use with R28 Connectors

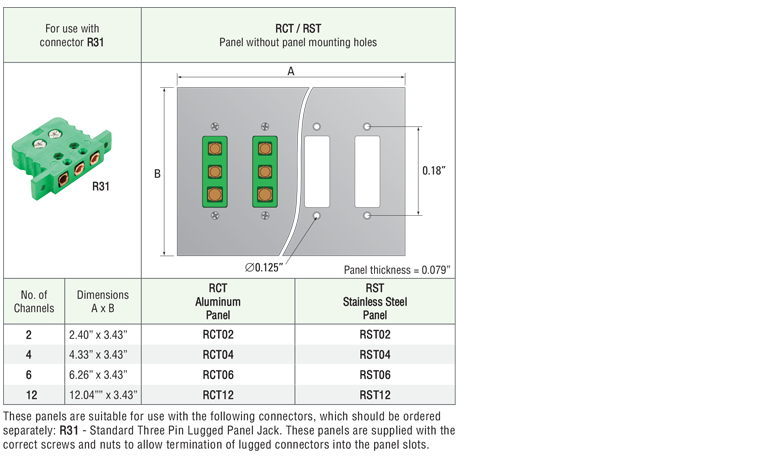

RCT / RST - Anodised aluminum and Stainless Steel Panels - For use with 3 Pin Standard Panel Connectors

RFT / RSF - Anodised aluminum and Stainless Steel Panels - For use with 3 Pin Standard Panel Connectors

RCC - Stainless Steel Panels - For use with Standard Ceramic Connectors

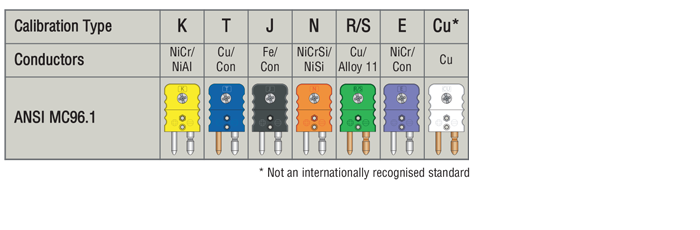

ANSI MC96.1

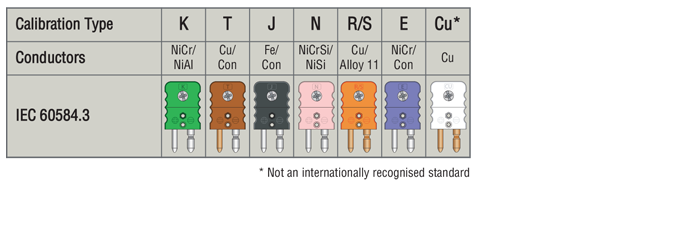

IEC 60584.3

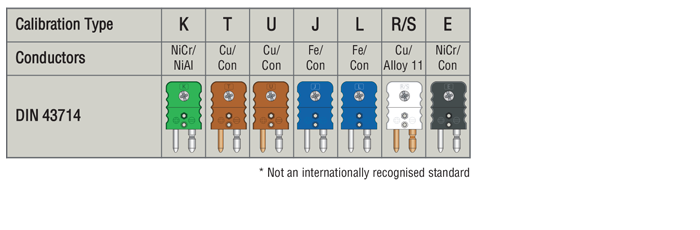

DIN 43714

JIS C 1610
